Stainless steel pipes are available in different schedules.These schedules decide the thickness of the walls. Schedule 10 Stainless Steel Pipes is one such pipes that offers lower installation cost and high corrosion resistance. The material cost remains the same as compared to other schedules however the weight is less hence it is less expensive.ss pipes schedule 10 is a thin wall pipes with a larger inner diameter. Along with being resistant to corrosion, this steel pipes is also easy to bend as compared to higher schedule pipes.

As per the sch 10 pipes dimensions if the size of the pipes is one inch. The outer diameter is 33.4 mm then the sch 10 pipes thickness in mm is 2.77 and 2.11 will be the weight. Similarly as per the ss pipes schedule chart if the size of the pipes is 3 inches the outside diameter would be 88.9 mm and the schedule 10 pipes thickness will be 3.05 mm with 6.05 mm as its weight.

Schedule 10 stainless steel pipes dimensions vary as per the requirement of the application.The weight of the pipes is determined by the outer diameter, ss 304 schedules 10 pipes thickness, and the size of the pipes. These pipes are used for high temperature as well as high pressure services. sch 10 pipes pressure rating defers according to the outside and inside diameter, and sch 10 ss pipes thickness in case the outer diameter of a particular pipes is 0.54 and the inside diameter of the pipes is 0.410, along with the thickness of 0.065 mm then the schedule 10 stainless steel pipes pressure rating of bursting internal pressure will be 18055 and that of collapsing external pressure would be 7425.

Schedule 10 pipes pressure rating defines the maximum pressure that a pipes can withstand. A higher rating requires the wall thickness of a pipes to be higher to sustain the pressure exerted on it or else they may rupture.

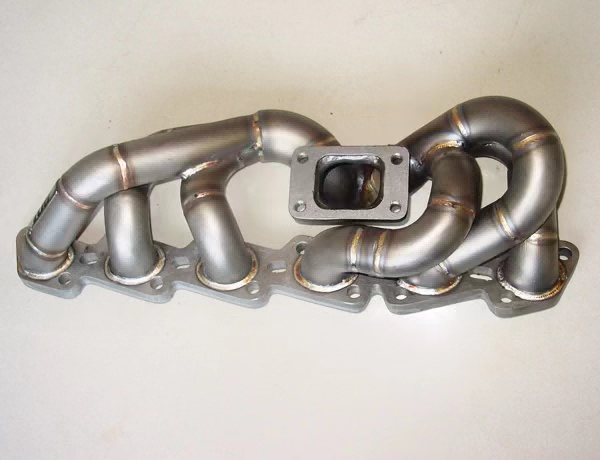

We have ability to make exhaust manifold in Stainless Steel SCH 10 Pipe,please feel free to contact us if you have any customize project.
