When it comes to reliable oil temperature control for performance vehicles and heavy machinery, choosing the right cooler core makes all the difference. Many buyers confuse insert-fin tube-shell oil cooler cores with ordinary bar-plate cores. In fact, the insert-fin design is a high-performance upgrade built for better cooling, higher pressure resistance, and more stable long-term operation.

In this guide, we break down its unique structure, key advantages, and ideal applications in simple terms.

What Is an Insert-Fin Oil Cooler Core?

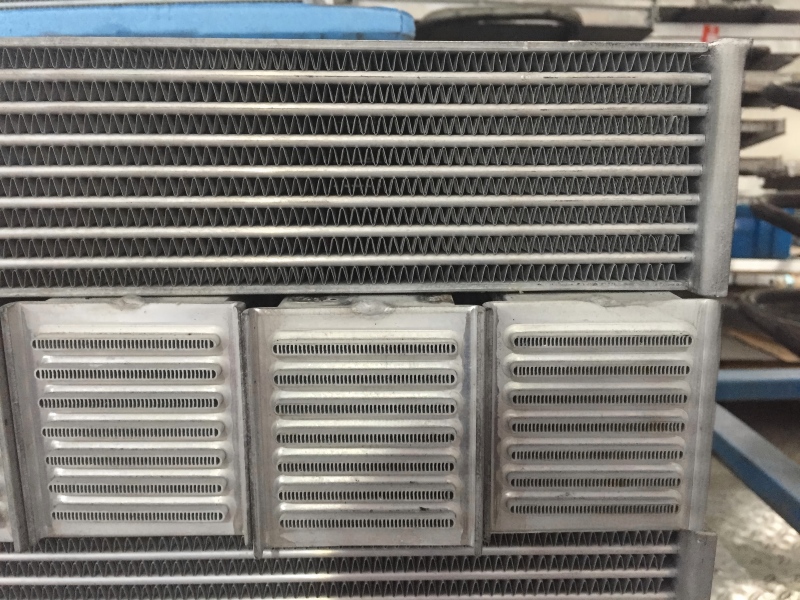

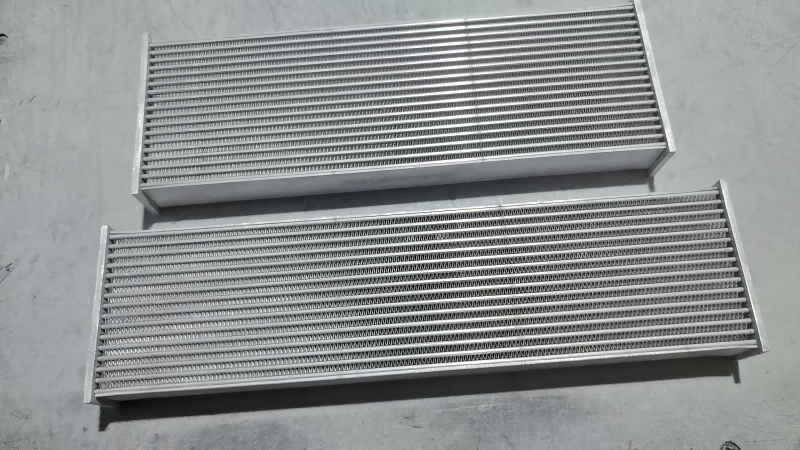

Unlike bar-plate cores that use separator plates to form flow channels, the insert-fin oil cooler adopts a tube-shell vacuum-brazed aluminum structure. Its defining feature: every flat oil tube is pre-fitted with an internal louvered insert fin. This internal fin disturbs oil flow to avoid laminar flow dead zones, while external fins maximize air cooling.

The full structure includes 5 core components:

Flat Oil Tube: Smooth, low-resistance oil flow channel for stable fluid circulation

Louvered Insert Fin (Inner Tube): Core upgrade that boosts internal heat transfer efficiency

Outer Air Cooling Fin: Enlarges air contact area for fast external heat dissipation

Side Support Plate: Strengthens overall rigidity, anti-vibration and anti-deformation

Header End Plate: Reserved for custom oil port welding for flexible installation

Key Benefits Over Ordinary Cooler Cores

1. Stronger Heat Dissipation

The built-in insert fin creates powerful oil turbulence inside the tube. This allows the oil to exchange heat more fully with the tube wall, effectively lowering engine oil, transmission oil, and hydraulic oil temperatures during high-load operation.

2. Superior High-Pressure Resistance

One-piece vacuum brazed aluminum construction delivers excellent structural strength. It resists bursting and oil leakage under long-term high pressure, far more durable than regular bar-plate cores for extreme working conditions.

3. Stable Flow, No Power Loss

The optimized tube and fin design enhances cooling without causing excessive flow resistance. It maintains smooth oil circulation, ensuring normal lubrication and stable power output for vehicles and machinery.

4. High Customization & Versatility

Core size, tube layers, and fin density can be customized. The bare core design allows users to weld matching ports and brackets according to different installation needs, suitable for various modified and industrial equipment.

Common Applications

The insert-fin oil cooler core is widely used for scenarios requiring stable high-load cooling:

Performance street cars & track racing vehicles

Off-road ATV/UTV

Heavy-duty construction machinery

Industrial hydraulic systems & transmission cooling systems.

Final Verdict

The insert-fin tube-shell oil cooler core is a cost-effective high-performance upgrade for heat dissipation systems. With its unique internal fin structure, high pressure resistance, and flexible customization, it solves the overheating pain points of ordinary coolers and is the ideal choice for automotive tuning, racing, and heavy industrial equipment cooling.
