When you have to customize your own design aluminum pipe or stainless steel pipe,
Pls take below Jagrow radius moulds we already built and 1D pipe is available.

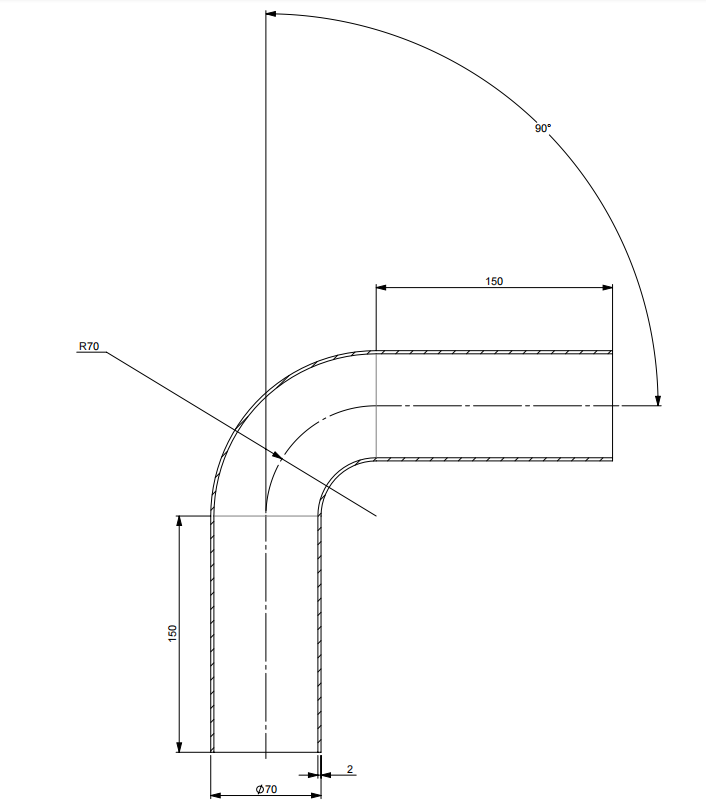

Given us your design drawings,we can make it out very quickly.
The materials we used for aluminum pipe is T-6063 and stainless steel pipe mainly used 304,
also many customers required us to use titanium for exhaust catback production.
Mould Model=OD | Bend Radius | Mould Model=OD | Bend Radius | |
159 | 850 | 54 | 85 | |
159 | 240 | 50.8 | 150 | |
152.4 | 230 | 50.8 | 80 | |
127 | 190 | 50.8 | 50.8 | |
114 | 170 | |||
101.6 | 165 | 48 | 55 | |
101.6 | 140 | 48 | 80 | |
101.6 | 101.6 | 48 | 70 | |
89 | 89 | 45 | 70 | |
89 | 114 | 45 | 55 | |
89 | 143 | 42 | 50 | |
80 | 128 | 42 | 63 | |
80 | 80 | |||
76 | 155 | 38 | 60 | |
76 | 120 | 38 | 100 | |
76 | 100 | 38 | 80 | |
76 | 76 | 38 | 46 | |
76 | 83 | 38 | 38 | |
70 | 110 | 35 | 60 | |
70 | 80 | 35 | 45 | |
70 | 70 | 32 | 66 | |
66.7 | 73 | 32 | 42 | |
63.5 | 150 | 28 | 49 | |
63.5 | 114 | 25 | 62 | |
63.5 | 100 | 25 | 35 | |
63.5 | 89 | 22 | 45 | |
63.5 | 80 | 20 | 30 | |
63.5 | 70 | 19 | 50 | |
63.5 | 63.5 | 16 | 42 | |
60 | 95 | 12.5 | ||
60 | 120 | 9 | ||
60 | 80 | 8 | ||
57 | 140 | 6 | ||
57 | 100 | |||
57 | 90 | |||
57 | 75 | |||
57 | 57 |

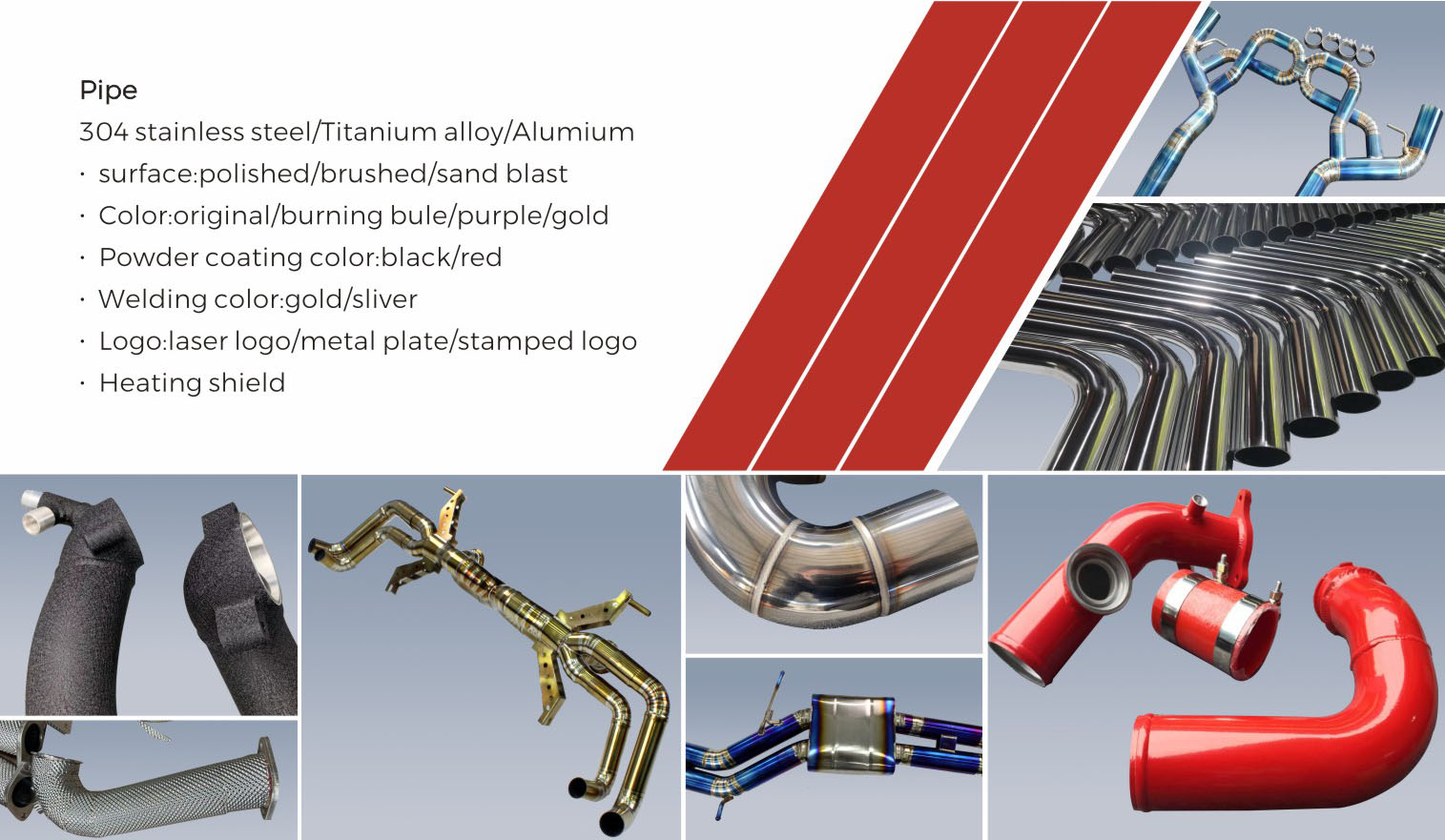

Here are some customization services we can provide.
After had your physical sample or drawing,we can make out new one and send back for your testing fittment and quality,then bulk orders after everything confirmed.
